HT - 110
MM BSW BSF UNF UNC BSP

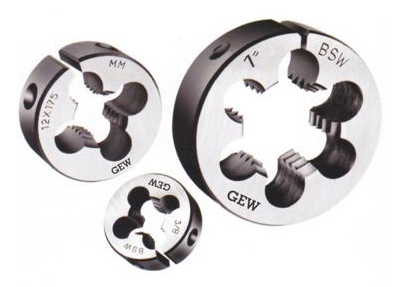

Solid and Split
| Screwing Size MM | Screwing Size Inches | Threads per Inch | A Outside Dia. Inches |
B Thickness Inches |
||||
|---|---|---|---|---|---|---|---|---|
| BSW | BSF | UNF | UNC | BSP | ||||
| 2x4 | 1/16 | 60 | -- | -- | -- | -- | 13/16 | 1/4 |
| 2.5x45 | 3x32 | 48 | -- | -- | -- | -- | 13/16 | 1/4 |
| 3x.5 | 1/8 | 40 | - | - | - | - | 13/16 | 1/4 |
| 4x.7 | 5/32 | 32 | -- | -- | -- | -- | 13/16 | 1/4 |
| 5x.8 | 3/16 | 24 | 32 | -- | -- | -- | 13/16 | 1/4 |
| 6x1.0 | 7/32 | 24 | 28 | -- | -- | -- | 13/16 | 1/4 |
| -- | 1/4 | 20 | 26 | 28 | 20 | -- | 13/16-1-1.516 | 1/4-3/8-7/16 |
| 7x1.0 | 9/32 | 20 | 26 | -- | -- | 1/8x28 | 1-1.5/16 | 3/8-7/16 |
| 8x1.25 | 5/16 | 18 | 22 | 24 | 18 | -- | 1-1.5/16 | 3/8-7/16 |
| 10x1.5 | 3/8 | 16 | 20 | 24 | 16 | -- | 1-1.5/16-1.1/2 | 3/8-7/8-1/2 |
| 10x1.5 | 3/8 | 16 | 20 | 24 | 16 | -- | 1-1.5/16-1.1/2 | 3/8-7/16-1/2 |
| 11x1.5 | 7/16 | 14 | 18 | 20 | 14 | -- | 1.5/16-1.1/2 | 7/16-1/2 |
| 12x1.75 | 1/2 | 12 | 16 | 13 | -- | 1.5/16-1.1/2-2 | 7/16-1/2-5/8 | |
| 14x2.0 | 9/16 | 12 | 16 | 18 | 12 | 1/4x19 | 1.1/2-2-2.1/4 | ½-5/8-11/16 |
| 16x2.0 | 5/8 | 11 | 14 | 18 | 11 | 3/8x19 | 1.1/2-2-2.1/4 | ½-5/8-11/16 |
| -- | 11/16 | 11 | 14 | 18 | -- | -- | 1.1/2-2-2.1/4 | ½-5/8-11/16 |
| 18x2.5 | 3/4 | 10 | 12 | 16 | 10 | -- | 1.1/2-2-2.1/4 | ½-5/8-11/16 |
| 20x.25 | 13/16 | 10 | 13 | 16 | -- | 1/2x14 | 2-2.1/4 | 5/8-11/16 |
| 22x2.5 | 7/8 | 9 | 11 | 14 | 9 | 5/8x14 | 2-2.1/4 | 5/8-11/16 |
| 24x3.0 | 1 | 8 | 10 | 12 | 8 | 3/4x14 | 2-2.1/4-3 | 5/8-11/16-7/8 |
| 27x3.0 | 1-1/8 | 7 | 9 | 12 | 7 | 1x11 | 2.1/4-3 | 11/16-7/8 |
| 30x3.5 | 1-1/4 | 7 | 9 | 12 | 7 | 1¼x11 | 3-4 | 7/8-1 |
| 33x3.5 | 1-3/8 | 6 | 8 | 12 | 6 | 1½x11 | 3-4 | 7/8-1 |
| 36x4.0 | 1-1/2 | 6 | 8 | 12 | 6 | -- | 3-4 | 7/8-1 |
| 39x4.0 | 1-5/8 | 5 | 8 | -- | -- | -- | 3-4 | 7/8-1 |
| 42x4.5 | 1-3/4 | 5 | 7 | -- | 5 | 2x11 | 4 | 1 |
| 45x4.5 | 1-7/8 | 4½ | 7 | -- | - | -- | 4 | 1 |
| 50x5.0 | 2 | 4½ | 7 | -- | 4½ | -- | 4 | 1 |
Note:
Special Sizes of round dies
can also be supplied
Solid round dies can be supplied
against order
Left hand & NPT/BSPT round dies
also available.
