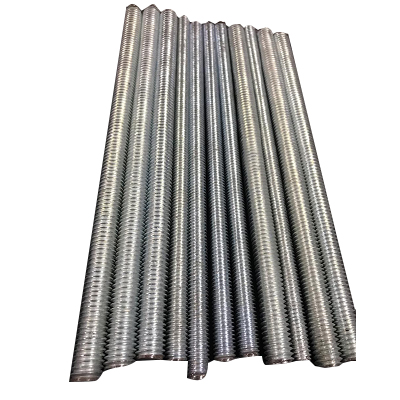

Gew Tools is the best Thread Rods Manufacturers,Exporters and Supplier in India. We offer Thread Rods in Stainless Steel - 304 and 316 grades. These Thread Rods are supplied to our clients in various dimensions at very economical prices. These Rods are made from high quality raw material and resistant to corrosion. Thread Rods can be used in Electrical Purposes, Plumbing Purposes,Temporary Down Ceiling Purposes and Construction of high buildings etc.
Specifications of Thread Rods:-
Low Carbon : Plain, Zinc, Hot Dipped galvanized and yellow
ASTM A307 & A193B7 : Plain Zinc and yellow
Stainless Steel : 18-8 : 304 and 316
Metric Rod : DIN975 & 976 in Class 4.8 , 8.8 & 10.9
Threads : UNC, UNF, MM& BSW, right hand, left hand and ACME
Diameters : M6 to M64 & 1/4" to 2-1/2"
Length : 1Mtr. To 3Mtrs & 1feet to 12feet
| Size | Wt Per 100 Feets in KGS | Pieces Per Tube |
|---|---|---|
| 1/4-20 | 5.50 | 50 |
| 5/16-18 | 9.00 | 35 |
| 3/8-16 | 13.25 | 25 |
| 7/16-14 | 17.60 | 17 |
| 1/2-13 | 23.00 | 12 |
| 9/16-12 | 29.85 | 10 |
| 5/8-11 | 38.00 | 2 |
| 3/4-10 | 55.25 | 5 |
| 7/8-9 | 74.75 | 4 |
| 1-8 | 100.00 | 3 |
| 11/-2-6 | 232.50 | 1 |
| 2"-4 ½ | 400.55 | 1 |
| THREADED RODS DIN 975 (DIN 976-1) | ||
|---|---|---|
| L,mm | 1000 | 2000 |
| M3 | 0,10 | 0,20 |
| M4 | 0,12 | 0,24 |
| M5 | 0,15 | 0,30 |
| M6 | 0,17 | 0,34 |
| M8 | 0,30 | 0,60 |
| M10 | 0,48 | 0,96 |
| M12 | 0,70 | 1,40 |
| M14 | 0,95 | 1,90 |
| M16 | 1,30 | 2,60 |
| M18 | 1,60 | 3,20 |
| M20 | 2,00 | 4,00 |
| M22 | 2,50 | 5,00 |
| M24 | 3,00 | 6,00 |
| M27 | 3,73 | 7,46 |
| M30 | 4,69 | 9,37 |
| M33 | 5,78 | 11,56 |
| M36 | 6,80 | 13,60 |
| M39 | 11,29 | 22,57 |
| M42 | 9,53 | 19,06 |
| M48 | 12,20 | 24,40 |
| M52 | 16,75 | 33,50 |
| M56 | 20,05 | 40,11 |
| Weight 1kg/ 1Pcs | ||
